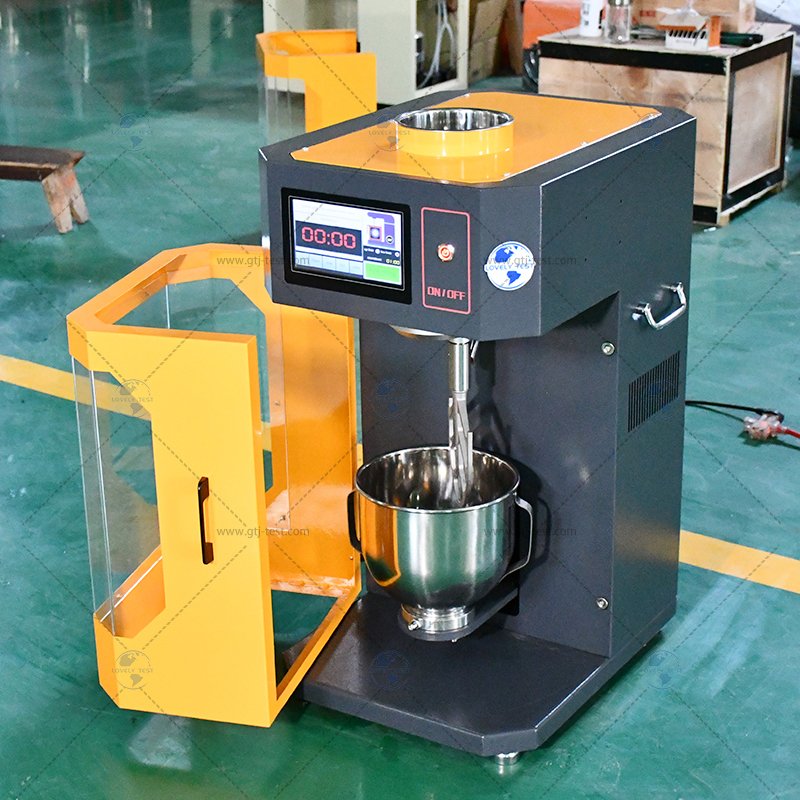

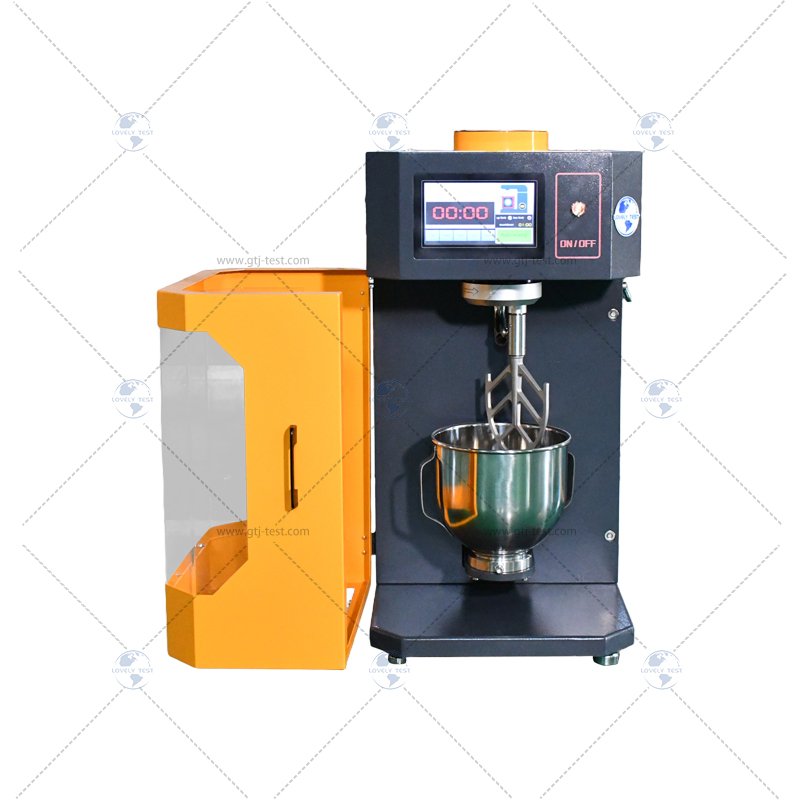

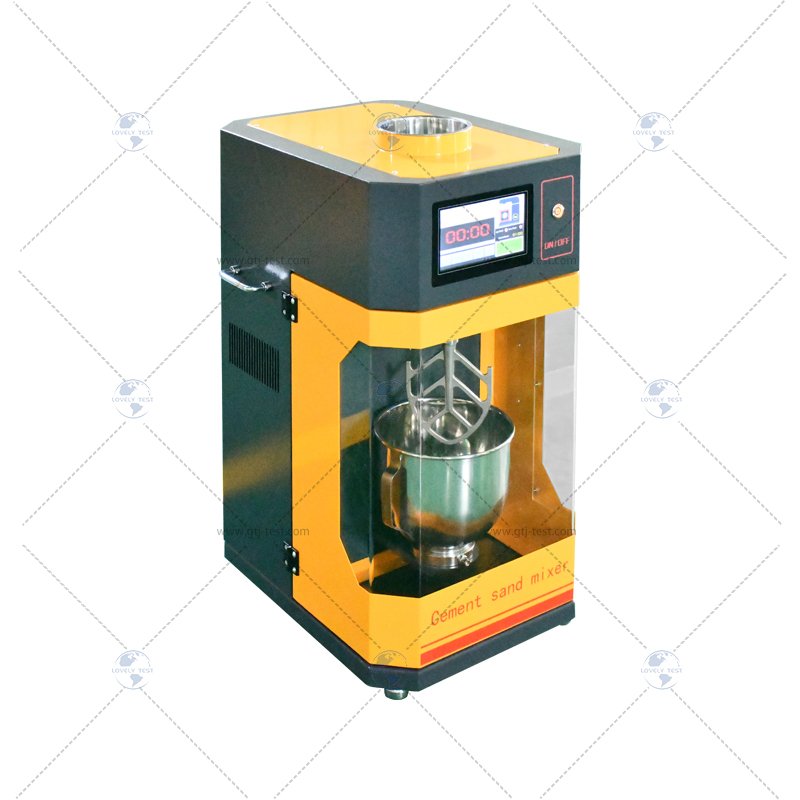

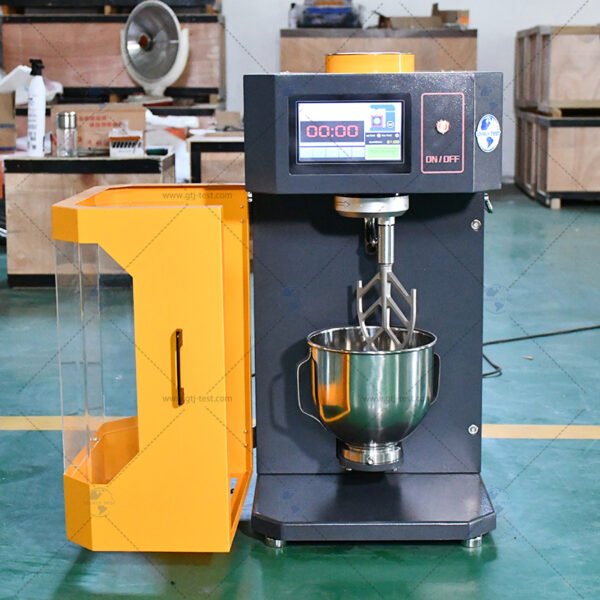

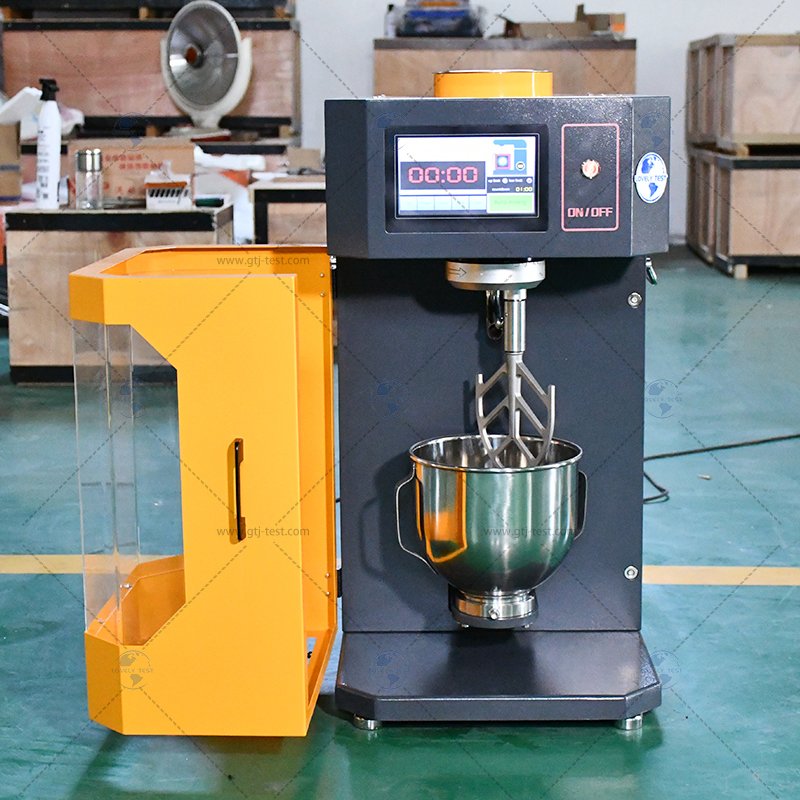

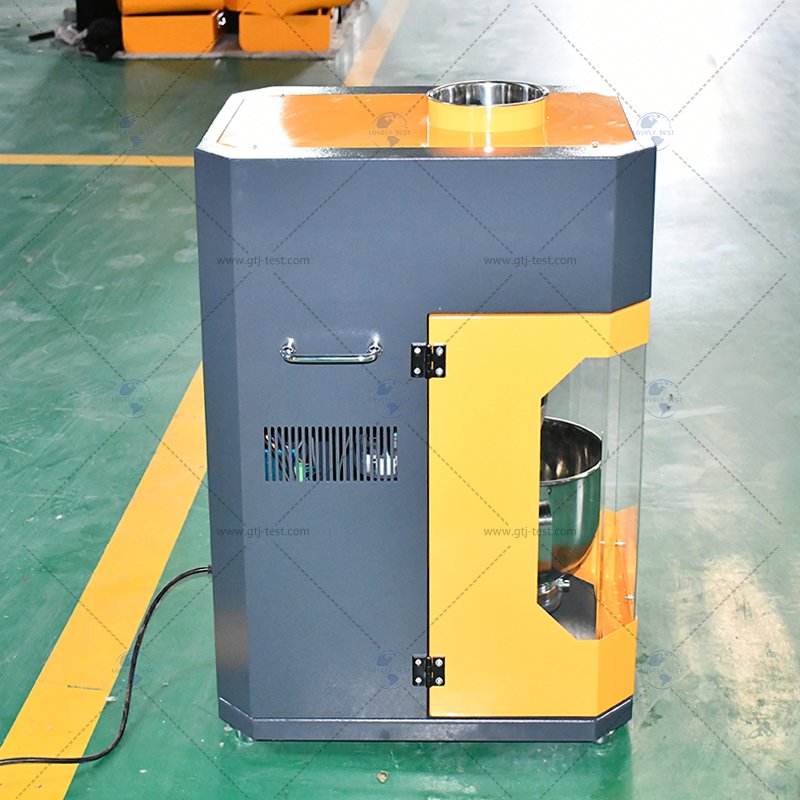

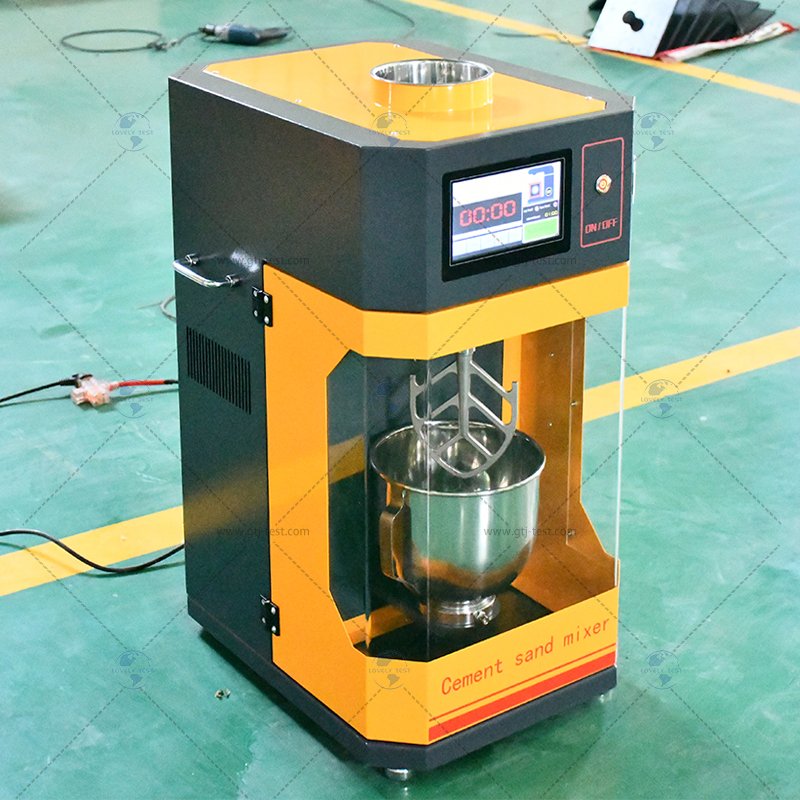

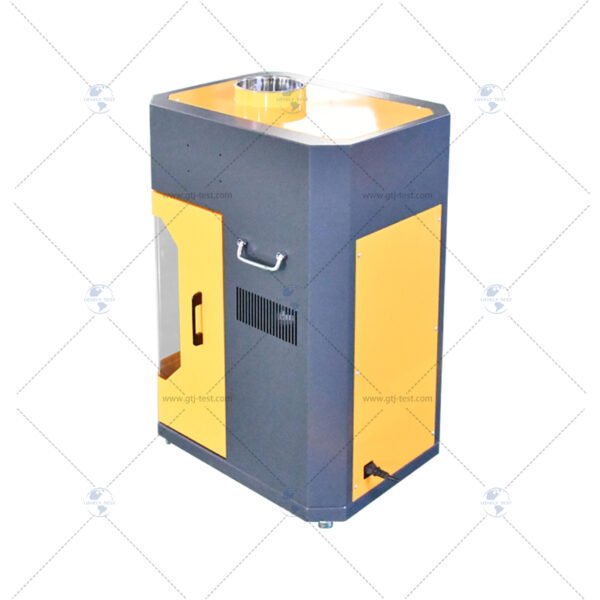

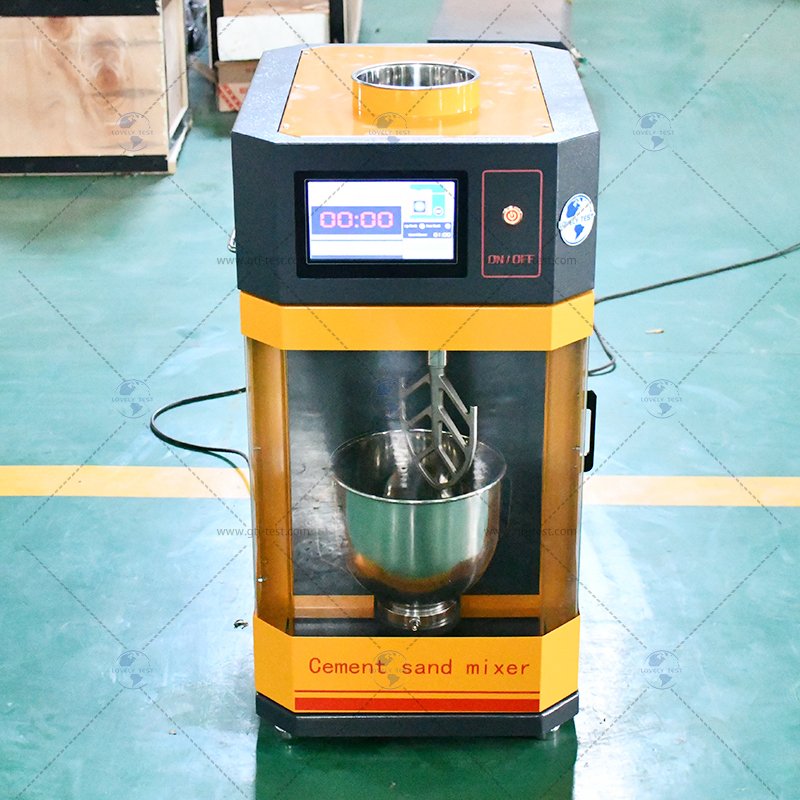

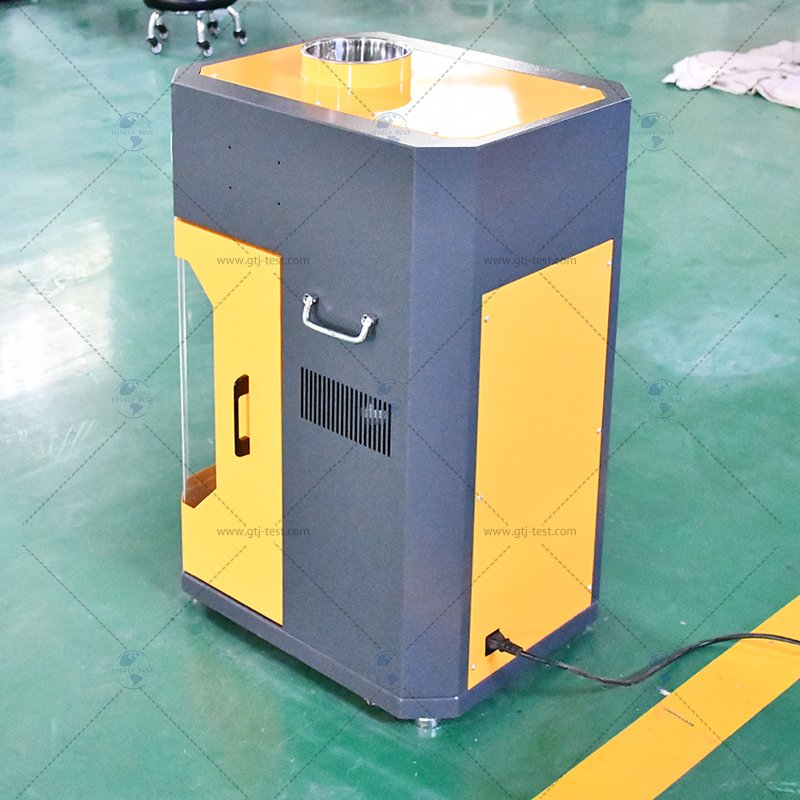

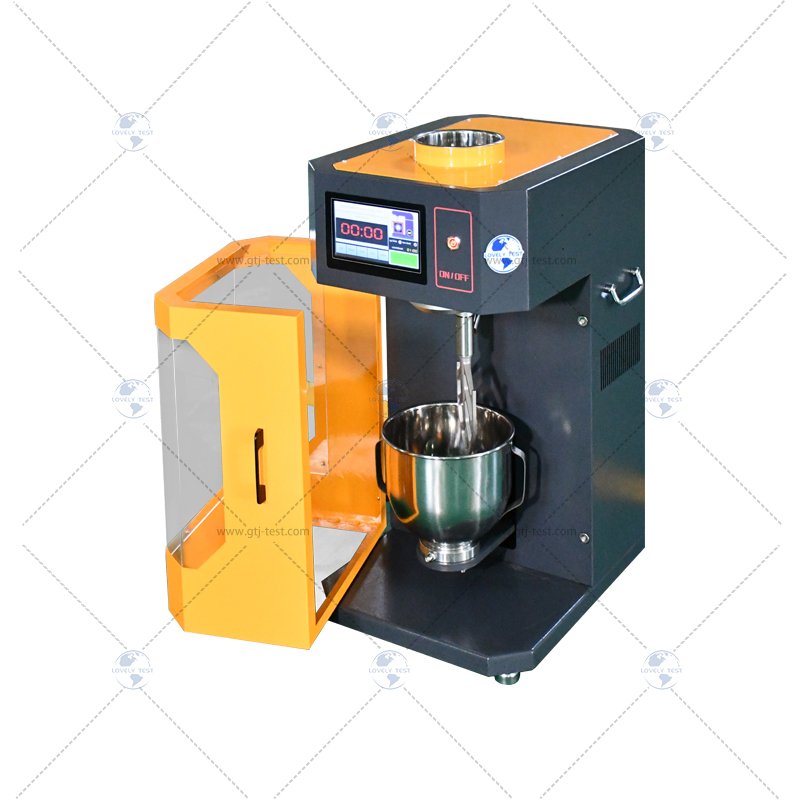

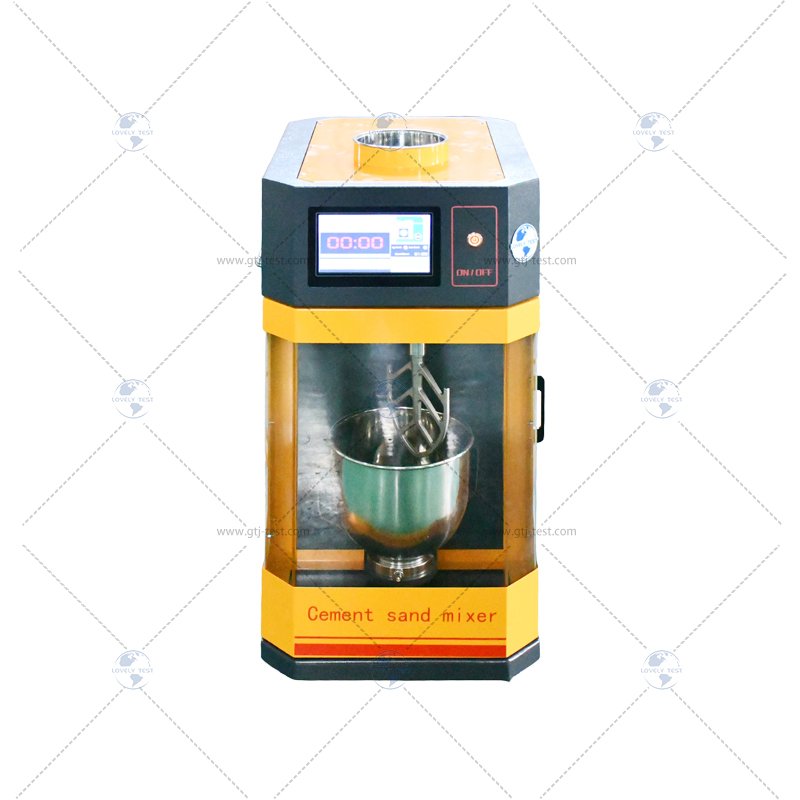

LT-20H Automatic Cement Mortar Mixer

Technical Parameters
1. Voltage: AC 220V, 50Hz
Power: 270W
2. Low Speed: Autorotation 140 ±1 r/min, Revolution 62 ±1 r/min
3. High Speed: Autorotation 285 ±2 r/min, Revolution 125 ±1 r/min

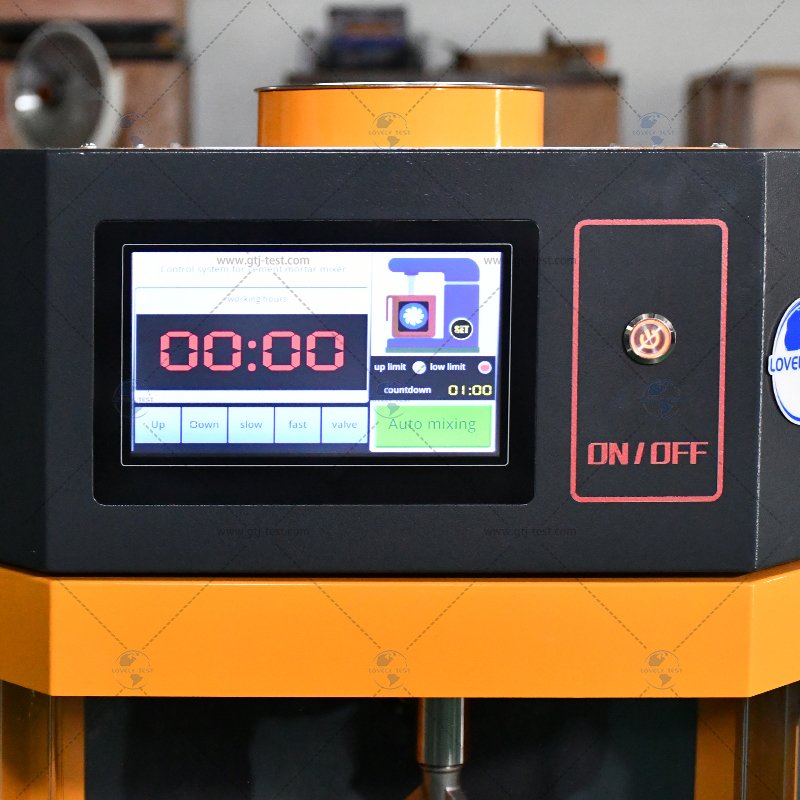

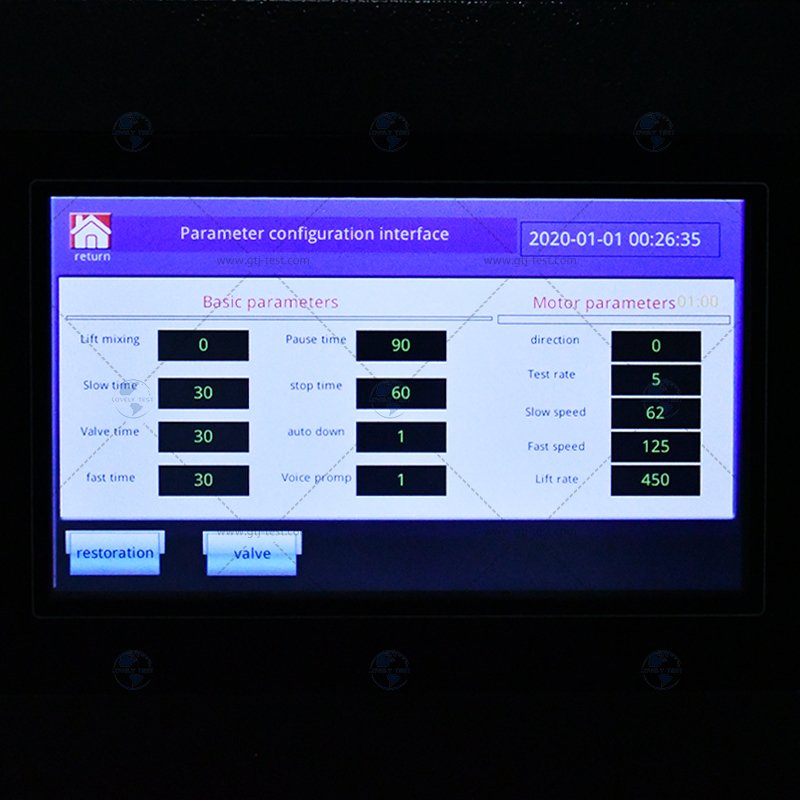

4. Drive Mode: Closed-loop servo motor drive, supports rotation speeds from 1 to 260 r/min (autorotation) with adjustable speed settings. 5. Human-Machine Interface: 7-inch LCD touch screen

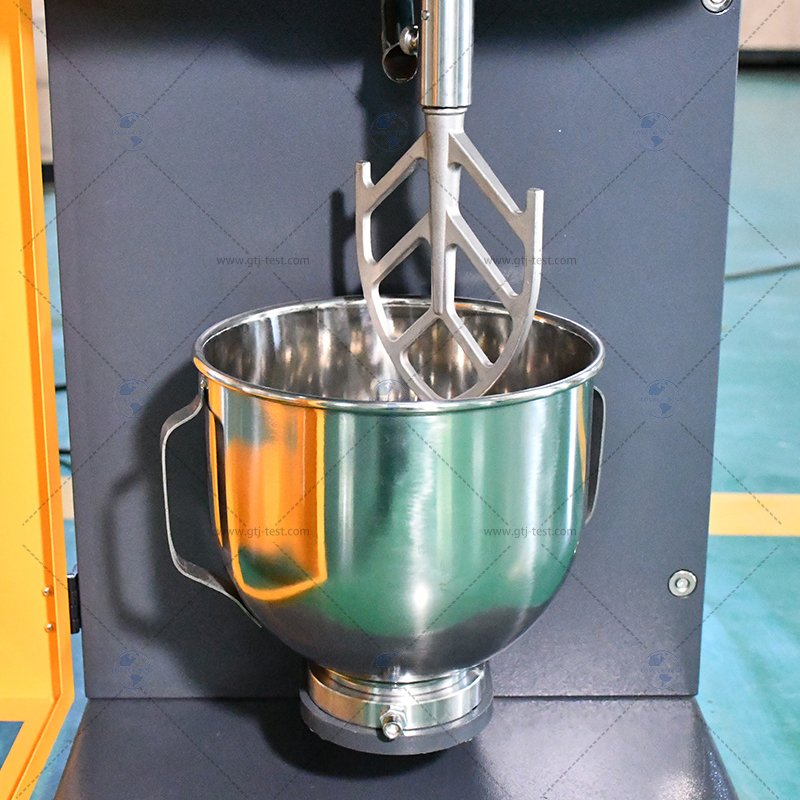

6. Mixing Blade: 304 stainless steel, material and dimensions conform to new standards
7. Mixing Blade Connection: Plug-in locking mechanism for quick and easy installation and removal
8. Lifting Method: Stepper motor-driven lift

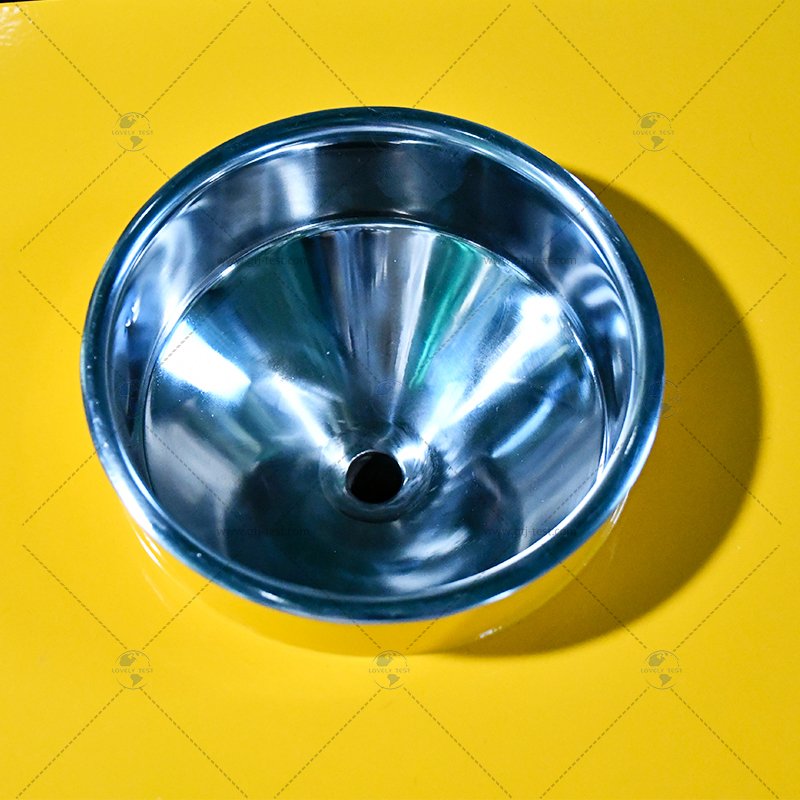

9. Mixing Pot: 5L capacity, internal diameter 200° ± 2°, clearance between mixing blade and mixing pot 3mm ± 1mm
10. Dimensions: 530mm * 430mm * 800mm (L * W * H)
11. Secondary Development: Not supported
12. Dust Cover: Acrylic
13. Net Weight: 65kg
