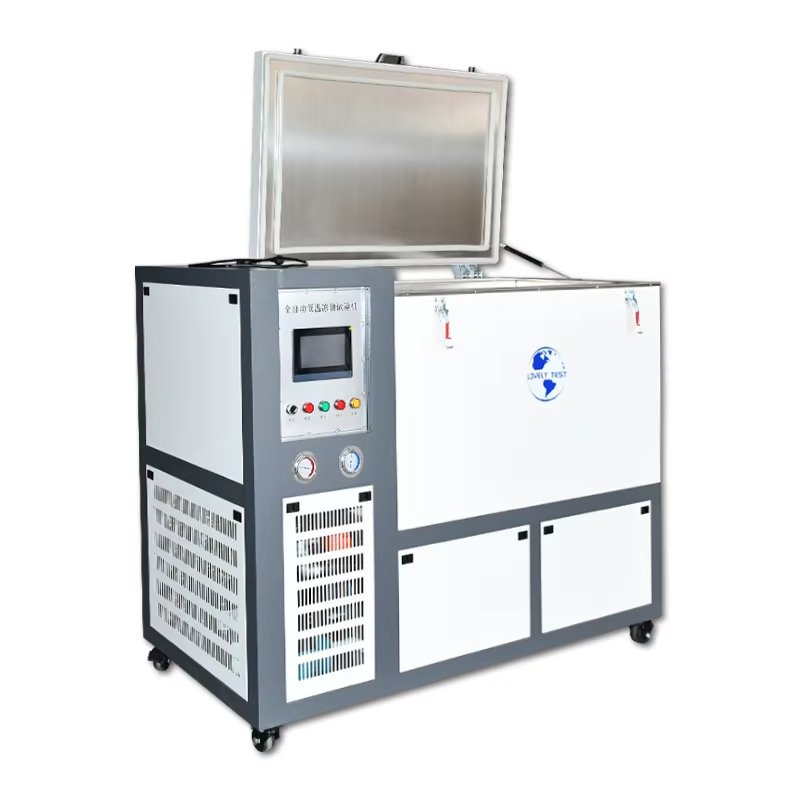

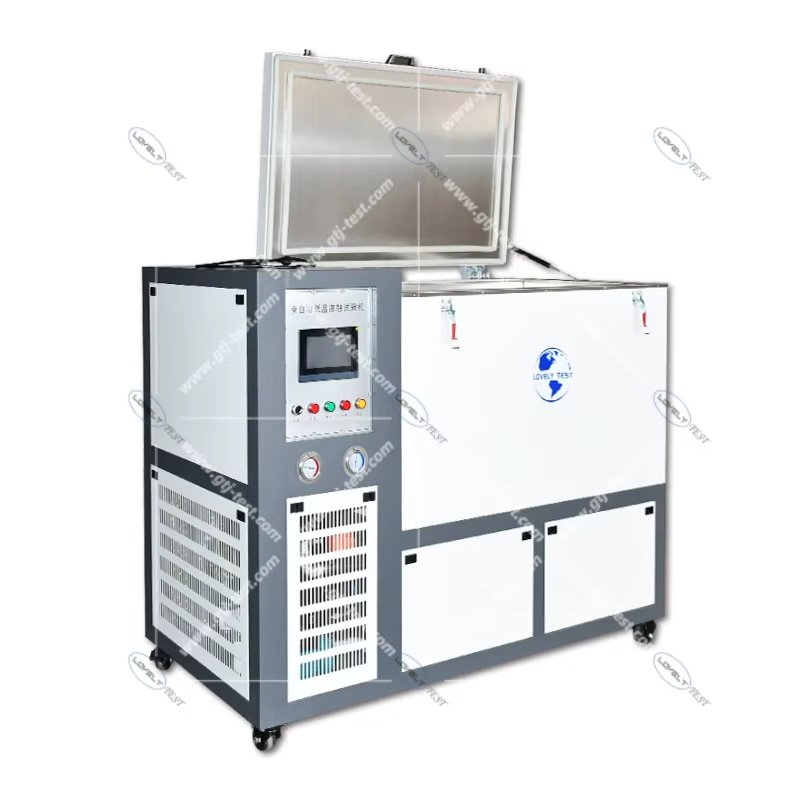

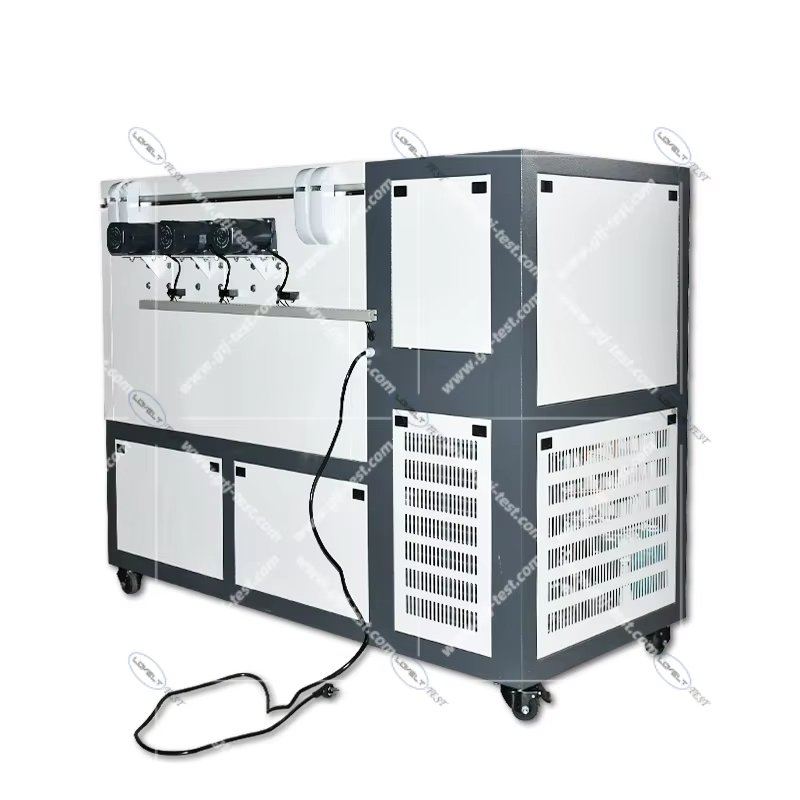

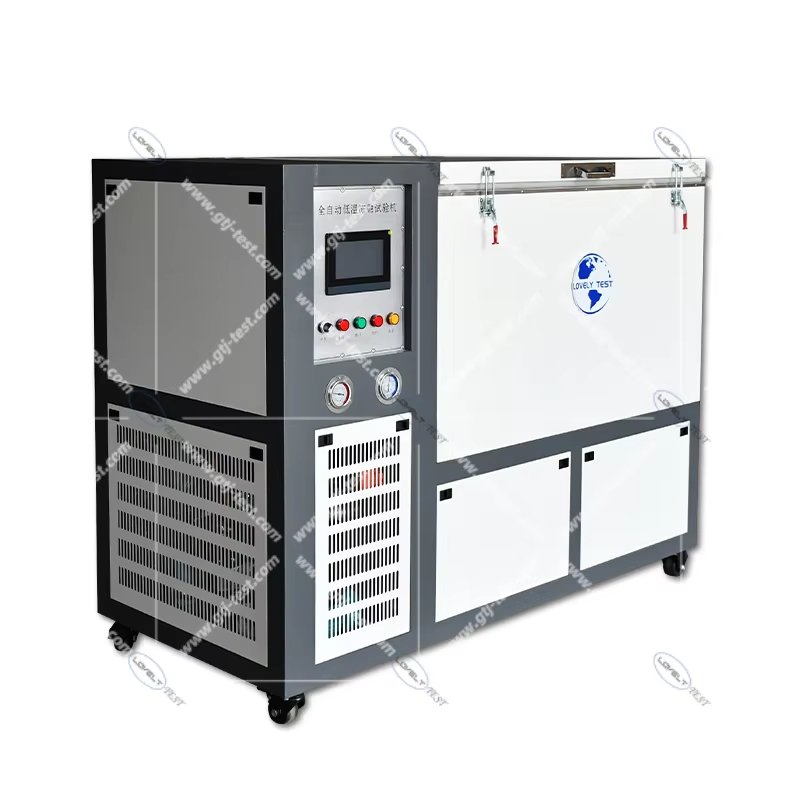

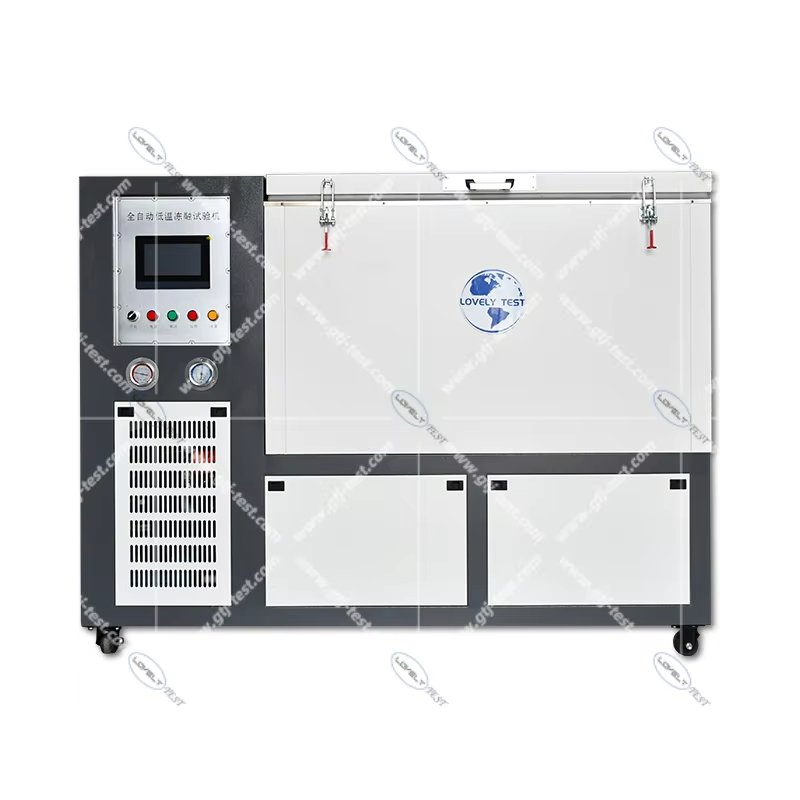

DWR-4 fully automatic low temperature freeze-thaw tester

Product details:

This tester is usually used to measure the degree of damage sustained by concrete during periodic freezing and thawing, helping engineers and architects understand the frost resistance of concrete and ensure its safety in cold environments‌.

Main technical parameters

  1. Condenser cooling method:Air cooling
  2. Freeze-thaw temperature:-40℃~50℃

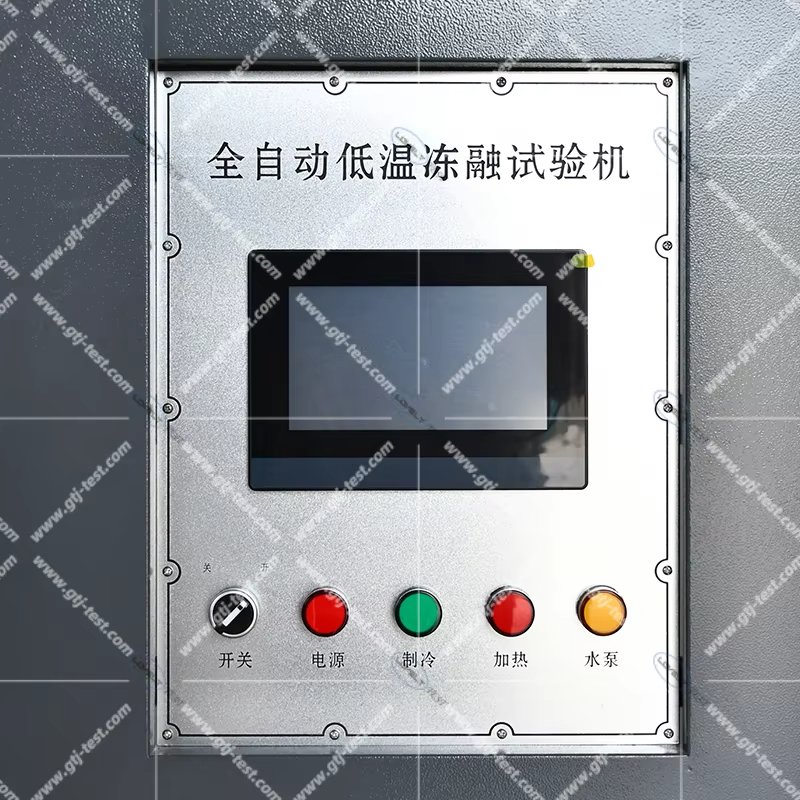

  3. Controller:7-inch touch screen controller
  4. Test chamber internal dimensions:1000*500*540mm
  5. External dimensions: 1700*910*1320mm
  6. Test specimen capacity:32 pieces of 100mm×100×100mm concrete test blocks
  7. Maximum operating power:8kW
  8. Weight:240Kg
