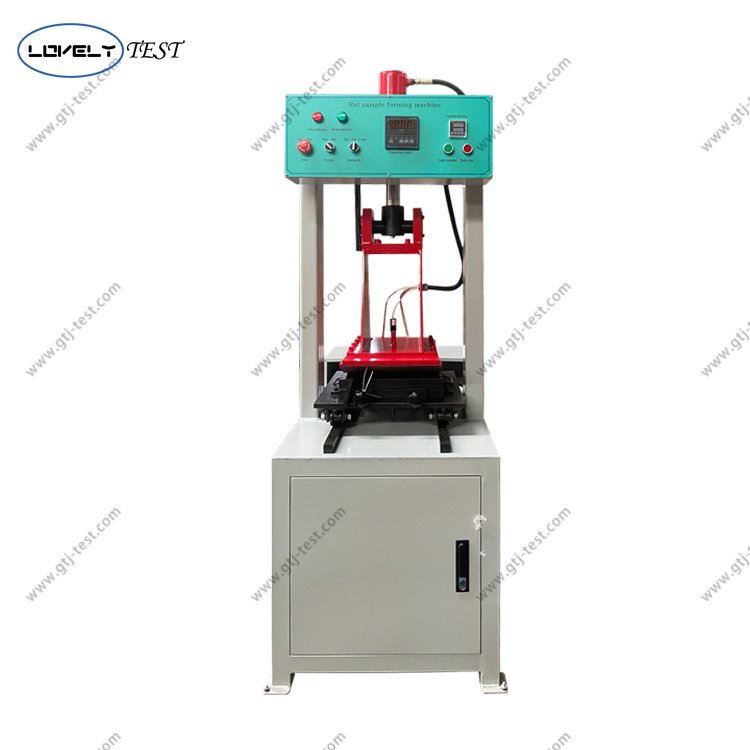

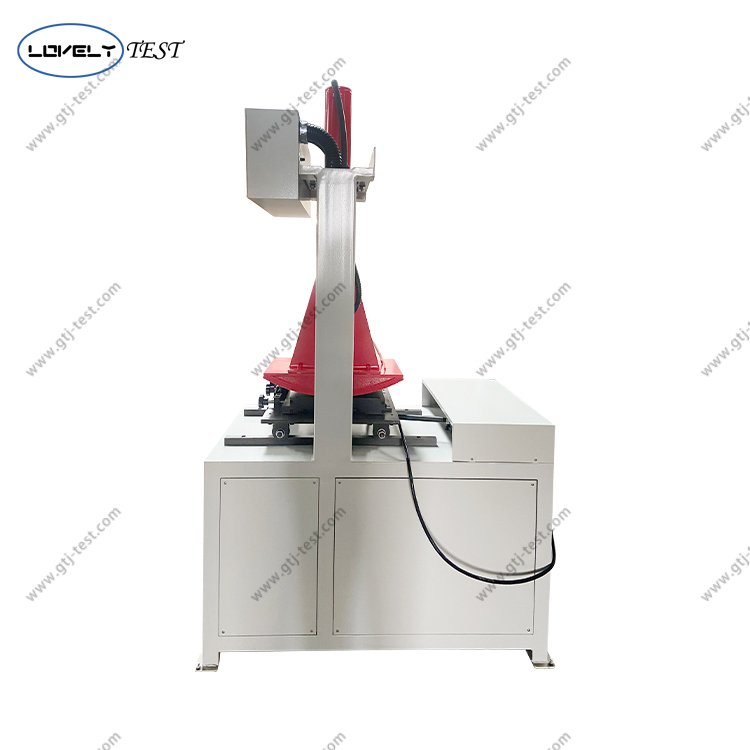

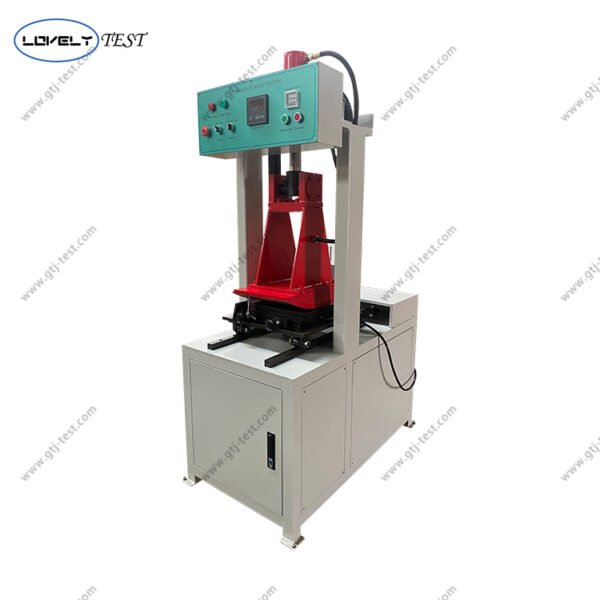

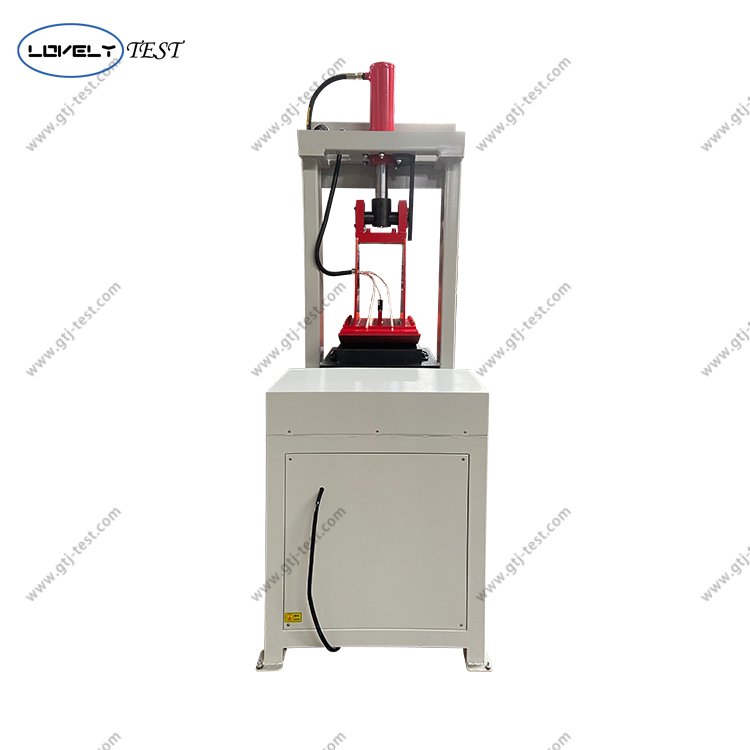

Asphalt Mixture Rutting Sample Forming Machine

The Roller Compactor is considered to be the method of laboratory specimen compaction that results in slabs of asphalt paving materials with properties that most closely simulate those of materials in the highway.

Slabs can be compacted to target mixture densities using loads that are equivalent to those of full-scale compaction equipment.

Additional information

Product details:

Features:

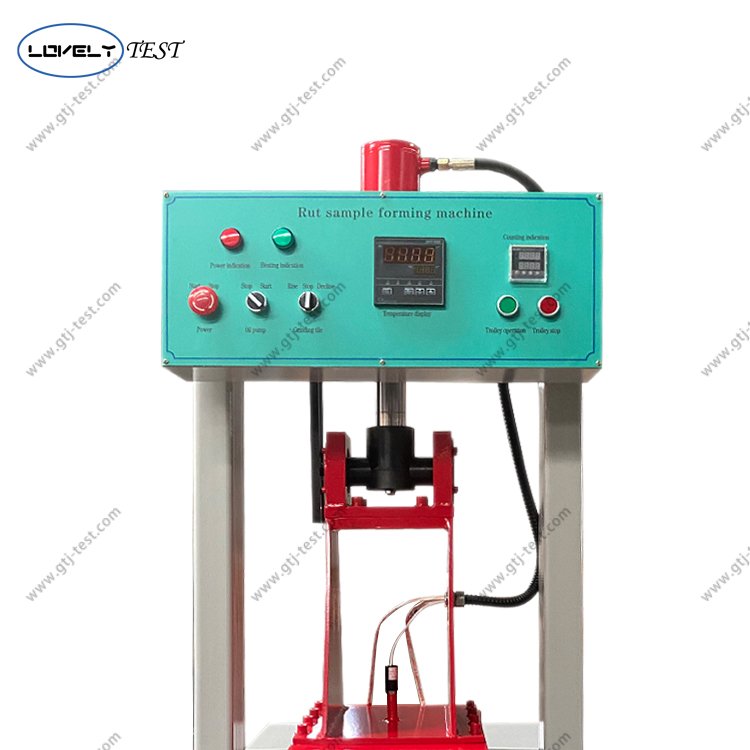

1. Intelligent type: Roller temperature, rollingtimes and compaction line load can be set.

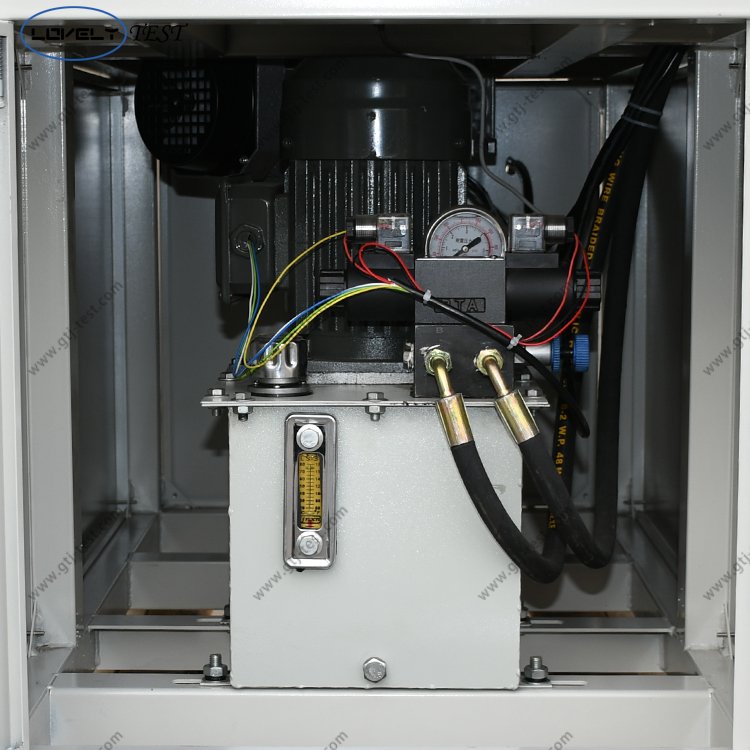

2. Electro-hydraulic servo control: Improves operational performance and safety performance.
3. Wide temperature control range, high precision and good stability: PID control is carried out by PWM modulation.



Specification:
Sample size: 300x300x50 (100) mm

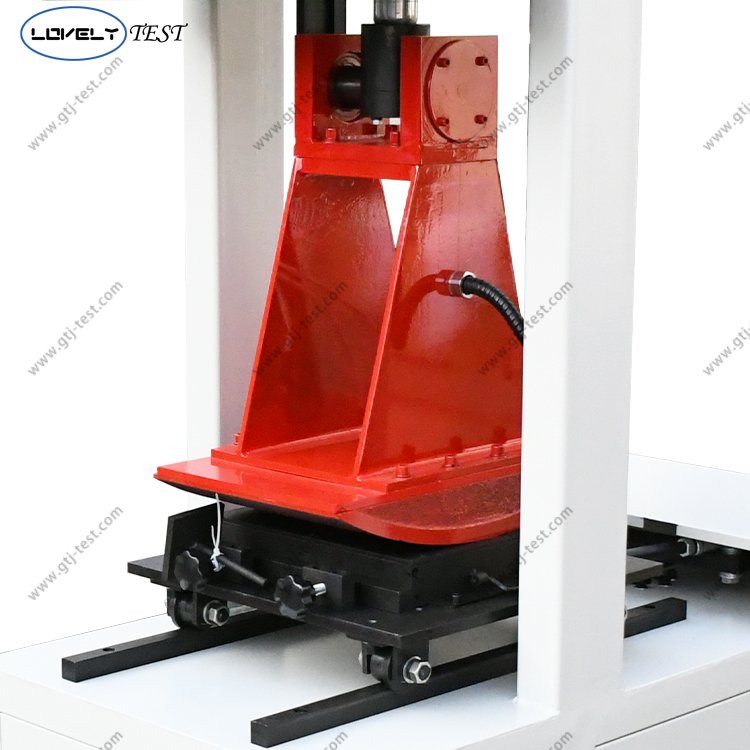

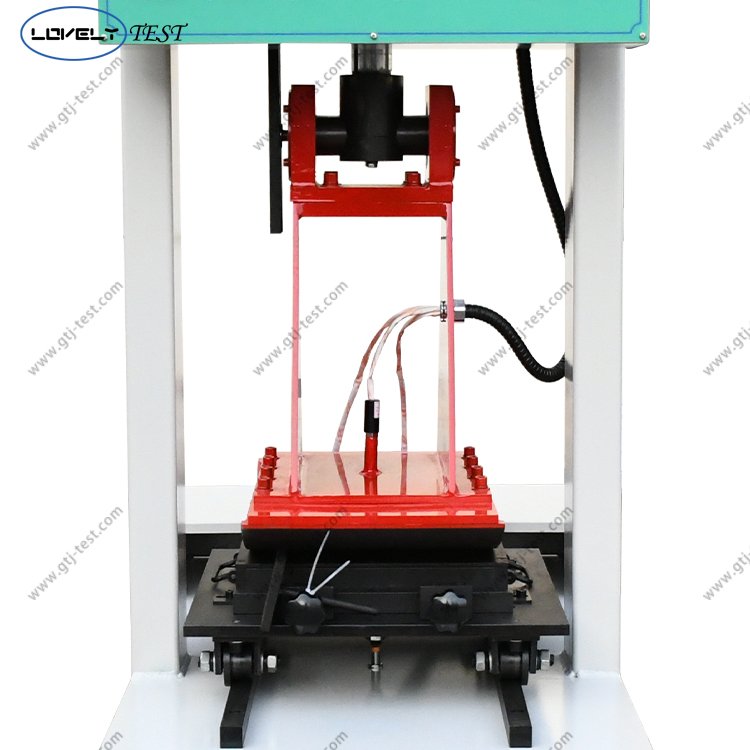

Rolling tile radius: 500mm
Rolling tile width: 300mm
The motion speed of the trial car: 6 round trips/min
The rolling pressure: 0-20kN
Rolling tile temperature: 0-200℃
Voltage: 380V/Customize
Power: 3kW
